Incoterms

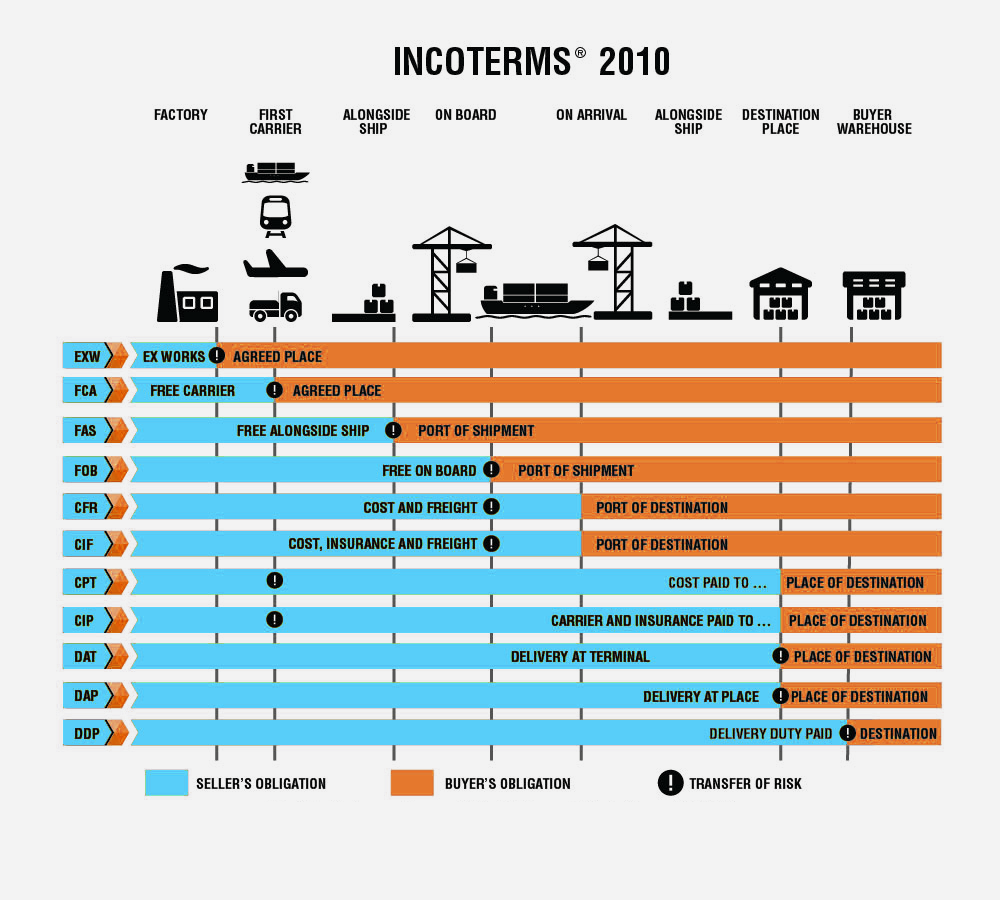

Incoterms are internationally accepted commercial terms defining the respective roles of the buyer and seller in the arrangement of transportation and other responsibilities and clarify when the ownership of the merchandise takes place. They are used in conjunction with a sales agreement or other method of transacting the sale.

EXW – Ex Works

Title and risk pass to buyer including payment of all transportation cost from the seller’s door. Used for any mode of transportation.

FCA – Free Carrier

Title and risk pass to buyer including transportation cost when the seller delivers goods cleared for export to the carrier. Seller is obligated to load the goods on the Buyer’s collecting vehicle.

FAS – Free Alongside Ship

Title and risk pass to buyer including payment of all transportation once delivered alongside ship by the seller. Used for sea or inland waterway transportation. The export clearance obligation rests with the seller.

FOB – Free On Board

Free On Board and risk pass to buyer including payment of all transportation cost once delivered on board the ship by the seller. Used for sea or inland waterway transportation.

CIF – Cost, Insurance, and Freight

Title, risk and insurance cost pass to buyer when delivered on board the ship by seller who pays the transportation cost to the destination port. Used for sea or inland waterway transportation.

CFR – Cost and Freight

Title and risk pass to buyer when delivered on board the ship by seller who pays transportation and insurance cost to destination port.Used for sea or inland waterway transportation.

DDP – Delivered Duty Paid

Title and risk pass to buyer when seller delivers goods to named destination point cleared for import. Used for any mode of transportation.

Container Types

20ft Dry Containers

Internal Dimension
Length	5,458 mm	17 ft 10.76 in
Width	2,284 mm	7 ft 6 in
Height	2,263 mm	7 ft 5 in
Door Opening
Width	2,290 mm	7 ft 6.16 in
Height	2,291 mm	7 ft 6 in
Weight
Max Gross	30,480 kg (24,000 kg)	67,200 lb (52,910 lb)
Tare	3,120 kg (2,960 kg)	6,880 lb (6,530 lb)
Max Payload	27,360 kg (21,040 kg)	60,320 lb (46,380 lb)
Load Capacity	28.0 cubic meter	1,000 cubic feet

40ft Dry Containers

Internal Dimension
Length	12,031 mm	39 ft 5.66 in
Width	2,348 mm	7 ft 8.44 in
Height	2,390 mm	7 ft 9.90 in
Door Opening
Width	2,336 mm	7 ft 8.01 in
Height	2,280 mm	7 ft 5.45 in
Weight
Max Gross	32,500 kg (30,480 kg)	71,650 lb (67,200 lb)
Tare	3,750 kg (3,770 kg)	8,270 lb (8,310 lb)
Max Payload	28,750 kg (26,710 kg)	63,380 lb (58,890 lb)
Load Capacity	67.7 cubic meter	2,389 cubic feet

40ft High Cube Dry Containers

Internal Dimension
Length	12,014 mm	39 ft 5 in
Width	2,337 mm	7 ft 8 in
Height	2,692 mm	8 ft 10 in
Door Opening
Width	2,337 mm	7 ft 8 in
Height	2,578 mm	8 ft 5.5 in
Weight
Max Gross	30,481 kg	67,200 lb
Tare	3,980 kg	8,775 lb
Max Payload	26,501 kg	58,425 lb
Load Capacity	76.3 cubic meter	2.694 cubic feet

45ft Dry Containers

Internal Dimension
Length	13,555 mm	44 ft 5.68 in
Width	2,348 mm	7 ft 8.44 in
Height	2,695 mm	8 ft 10.12 in
Door Opening
Width	2,336 mm	7 ft 8.01 in
Height	2,585 mm	8 ft 5.75 in
Weight
Max Gross	32,500 kg (30,480 kg)	71,650 lb (67,200 lb)
Tare	4,820 kg	10,628 lb
Max Payload	27,620 kg (25,600 kg)	60,890 lb (56,440 lb)
Load Capacity	86.0 cubic meter	3,031cubic feet

20ft Steel Reefer Containers

Internal Dimension
Length	5,458 mm	17 ft 10.76 in
Width	2,284 mm	7 ft 6 in
Height	2,263 mm	7 ft 5 in
Door Opening
Width	2,290 mm	7 ft 6.16 in
Height	2,291 mm	7 ft 6 in
Weight
Max Gross	30,480 kg (24,000 kg)	67,200 lb (52,910 lb)
Tare	3,120 kg (2,960 kg)	6,880 lb (6,530 lb)
Max Payload	27,360 kg (21,040 kg)	60,320 lb (46,380 lb)
Load Capacity	28.0 cubic meter	1,000 cubic feet

40ft High Cube Steel Reefer Containers

Internal Dimension
Length	11,587 mm	38 ft 0.29 in
Width	2,290 mm	7 ft 6.16 in
Height	2,539 mm	8 ft 4.00 in
Door Opening
Width	2,290 mm	7 ft 6.16 in
Height	2,572 mm	8 ft 5.40 in
Weight
Max Gross	34,000 kg (30,480 kg)	74,960 lb (67,200 lb)
Tare	4,700 kg (4,600 kg)	10,360 lb (10,580 lb)
Max Payload	29,300 kg (25,680 kg)	74,960 lb (56,620 lb)
Load Capacity	67.0 cubic meter	2,378 cubic feet

40ft High Cube Alum Reefer Containers

Internal Dimension
Length	11,585 mm	38 ft 0.29 in
Width	2,290 mm	7 ft 6.16 in
Height	2,527 mm	8 ft 3.49 in
Door Opening
Width	2,290 mm	7 ft 6.16 in
Height	2,493 mm	8 ft 2.10 in
Weight
Max Gross	32,500 kg (30,480 kg)	71,650 lb (67,200 lb)
Tare	4,110 kg	9,060 lb
Max Payload	28,390 kg (26,370 kg)	62,590 lb (58,140 lb)
Load Capacity	67.0 cubic meter	2,367 cubic feet

20ft Open Top Containers

Internal Dimension
Length	5,893 mm	19 ft 4.21 in
Width	2,352 mm	7 ft 8.36 in
Height	2,348 mm	7 ft 9.74 in
Door Opening
Width	2,340 mm	7 ft 8 in
Height	2,280 mm	7 ft 6 in
Weight
Max Gross	30,480 kg (24,000 kg)	67,200 lb (52,910 lb)
Tare	2,150 kg (2,450 kg)	4,7470 lb (5,400 lb)
Max Payload	28,330 kg (21,550 kg)	62,460 lb (47,510 lb)
Load Capacity	32.5 cubic meter	1,150 cubic feet

40ft Open Top Containers

Internal Dimension
Length	12,032 mm	39 ft 5.31 in
Width	2,346 mm	7 ft 8.36 in
Height	2,381 mm	7 ft 9.74 in
Door Opening
Width	2,338 mm	7 ft 8.05 in
Height	2,244 mm	7 ft 4.35 in
Weight
Max Gross	30,480 kg	67,200 lb
Tare	4,120 kg	9,080 lb
Max Payload	26,360 kg	58,120 lb
Load Capacity	66.0 cubic meter	2,346 cubic feet

20ft Flat Rack Containers

Internal Dimension
Length	5,858 mm	19 ft 4.17 in
Width	2,018 mm	6 ft 7.45 in
Height	2,077 mm	6 ft 9.77 in
Door Opening
Width
Height
Weight
Max Gross	34,000 kg	74,960 lb
Tare	2,800 kg	6,170 lb
Max Payload	31,200 kg	68,790 lb
Load Capacity	25.0 cubic meter	882 cubic feet

40ft FLAT RACK CONTAINERS

Internal Dimension
Length	11,986 mm	39 ft 3.89 in
Width	2,236 mm	7 ft 4.03 in
Height	1,968 mm	6 ft 5.48 in
Door Opening
Width
Height
Weight
Max Gross	52,500 kg	115,740 lb
Tare	5,980 kg	13,180 lb
Max Payload	47,400 kg	104,500 lb
Load Capacity	53.0 cubic meter	1,862 cubic feet
